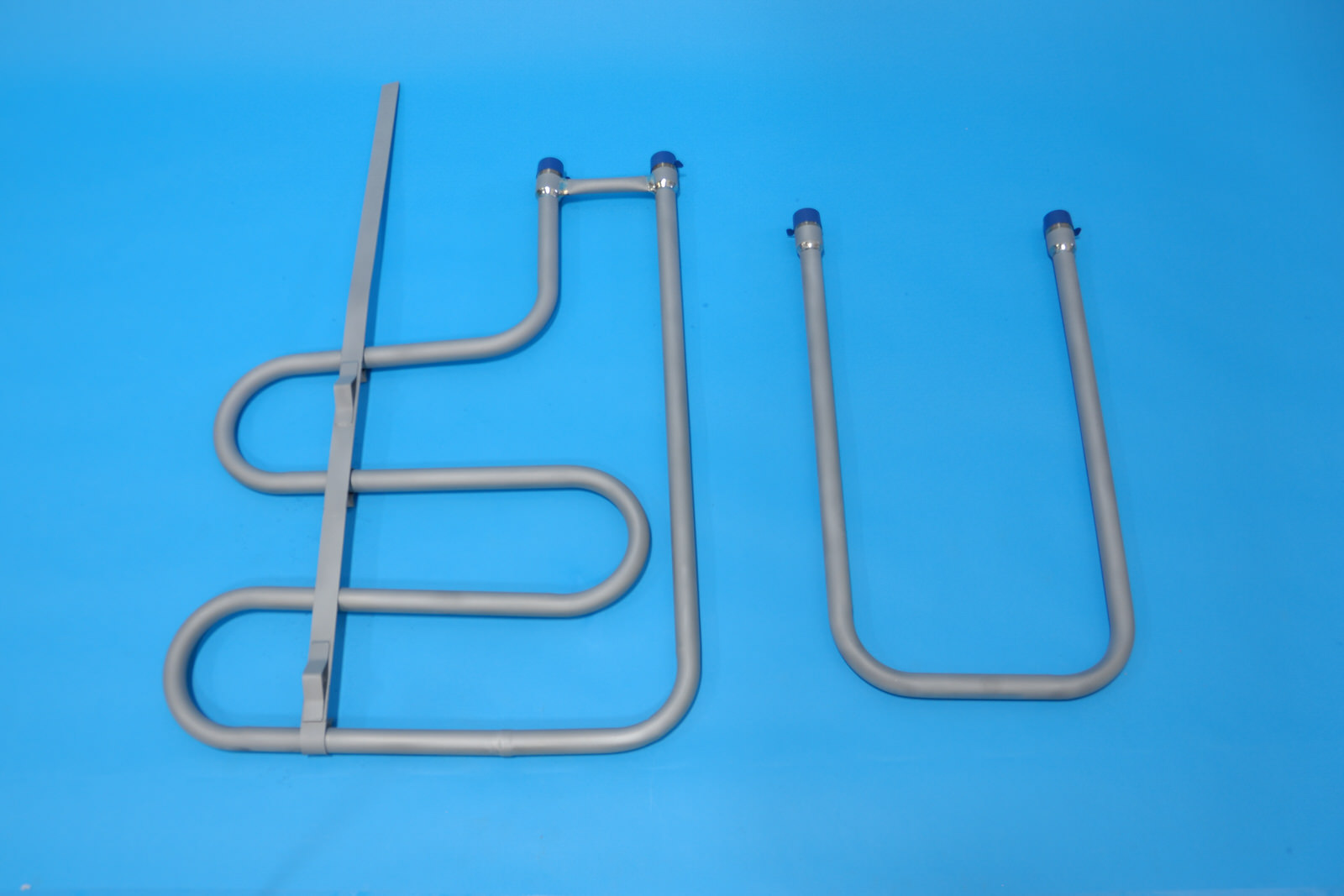

Through TITAN’s experienced technical support, its commitment to service and superior manufacturing quality, TITAN is dedicated to being the #1 supplier of corrosion-resistant equipment to the Metal Finishing, Plating and Anodizing Industries. TITAN supplies immersion coils in many different configurations to meet the specific needs of the industry. Grid coils are used to achieve the maximum heat transfer area in the least amount of dimensional space. Serpentine and “U” coils are used in situations were smaller heat transfer requirements are needed.

Available Materials of Construction:
Coil-5Coil 1

  • Titanium
  • Stainless Steel
  • Zirconium
  • Tantalum
  • Niobium

Standard Immersion Coil Features:

D_Manifold_2

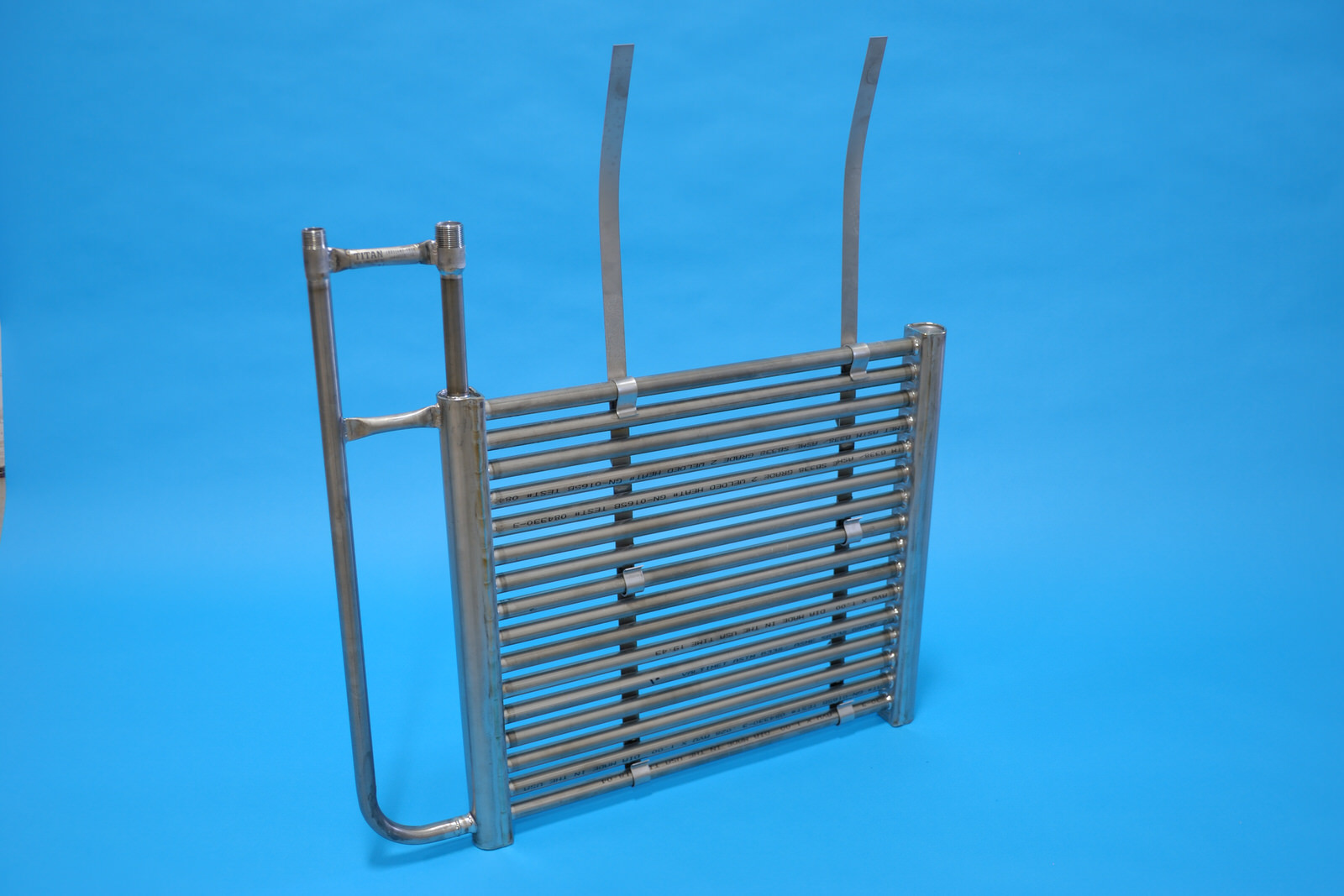

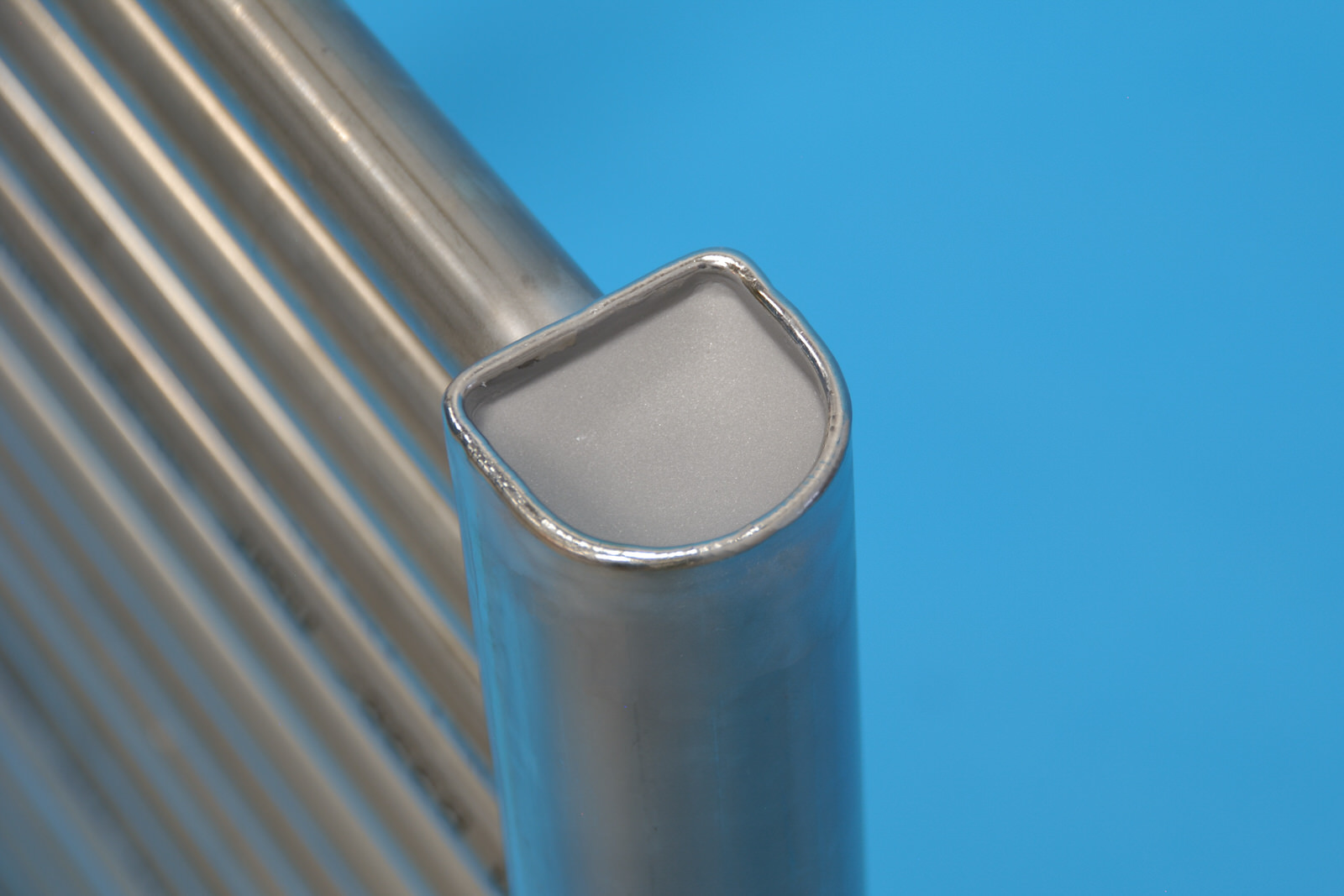

Grid Coils Incorporate TITAN’s proprietary D-Shape Manifold Design

  • 1″ O.D. Titanium Tubing
  • Various Mounting Options Available
  • Support Braces Between Riser Tubes for Coil Strength
  • All Styles Equipped for Water or Steam Service
  • Pressure tested at 100 PSIG
  • 100% Inert Gas Purged Welds
  • 5-Year Warranty

Standard Immersion Coil Options:

  • Hanger Straps
  • Anti-Flotation Arms
  • Solution Level Jackets
  • Horizontal or Vertical Orientation for Side Wall Mounting or Bottom Mounts Also Available

Immersion Coils for Steel Pickling Applications Using Sulfuric or Hydrochloric Acid

TITAN Metal Fabricators are the industry experts for corrosion-resistant pickle bath heat exchangers. Our products are all custom-engineered and fabricated to specific applications. TITAN offers a full line of standard and custom designed in-tank immersion coils for the indirect steam heating of pickle bath operations.

  • Cost competitive with PTFE Immersion Heaters
  • Elimination of downtime due to equipment failure
  • No spare parts to keep in inventory
  • Superior corrosion resistance
  • High heat transfer
  • High steam pressures to reduce required surface area
  • Fully welded metal design eliminates breakage during handling, installation and operation
  • Elimination of acid leaks into steam condensate
Comparison of a PTFE Immersion Heater to a Zirconium Immersion Coil
PTFE Heat Exchanger Zirconium Heat Exchanger Tantalum Heat Exchanger
Heat Input Rating (BTU) 1,000,000 1,000,000 1,000,000
Steam Pressure (PSI) 75 75 75
Typical Overall Heat Transfer 250 650 650
Coefficient (BTU/HR/SQ. FT. Deg F) Surface Area Required (SQ. FT) 29 *11.2 *11.2
Inventory of spare parts required YES NO NO
Fully welded metal design NO YES YES
+Basic heat transfer equation used to calculate required surface area. +Zirconium heat exchanger surface are required does not take into consideration using a higher pressure steam

For Technical Information about the corrosion resistance of these materials, please see the Technical Resources Section.
